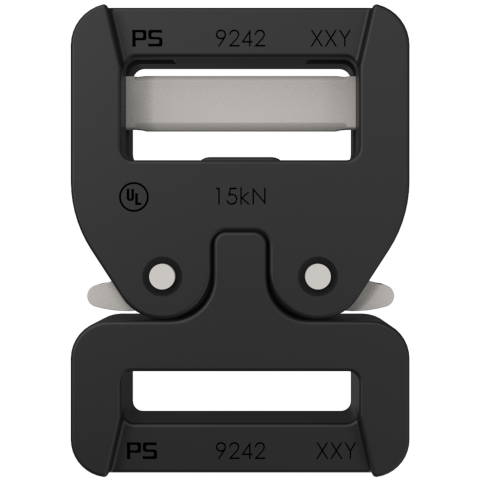

The Pensafe 9242 Quick Connect Buckle is precision engineered for reliability, strength, and ease of use. Made from durable drop forged anodized aluminum, this buckle provides a secure and lightweight connection point ideal for industrial and safety harness applications. Built for performance in demanding environments, it ensures consistent locking action and long term dependability.
Specifications
• Material: Drop Forged Anodized Aluminum
• Minimum Tensile Strength: 3,372 lbs (15 kN)
• Compact ergonomic design
• Smooth quick connect engagement
• Corrosion resistant finish

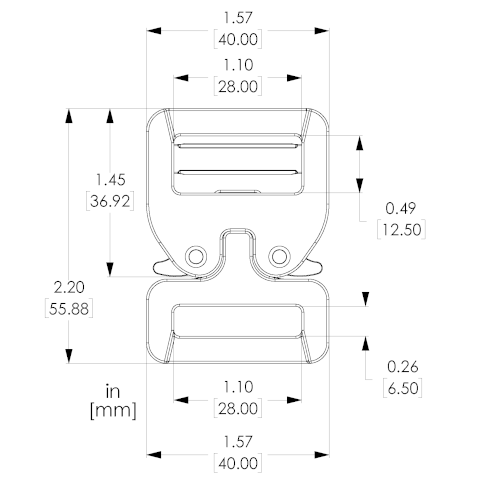

Dimensions
• Width: 1.57 in (40 mm)
• Internal Slot Width: 1.10 in (28 mm)
• Overall Height: 2.20 in (55.88 mm)
• Upper Section Height: 1.45 in (36.92 mm)
• Slot Depths: 0.49 in (12.50 mm) top, 0.26 in (6.50 mm) bottom
Certifications
• ANSI/ASSP Z259.12-2019
• CSA Z259.12-16
