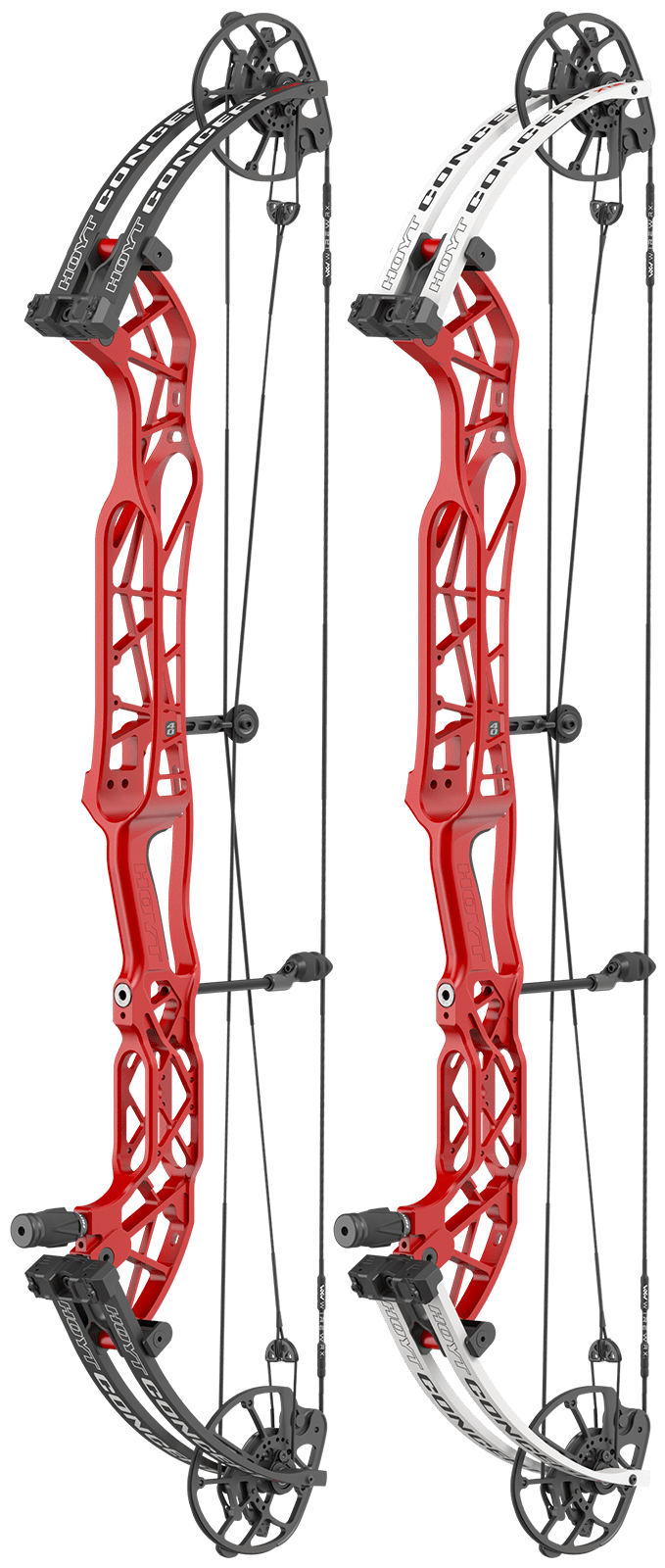

The Hoyt Concept XTS 40 LD is the long-draw target compound bow in the Concept XTS family. It combines a 40-inch axle-to-axle platform with a 32.25-34 inch draw-length range, HBX cams and Hoyt's XTS tuning system.
Specifications
Axle-to-axle
40 inches
Brace height
7.68 inches
Mass weight
5.15 lb
Draw length
32.25-34 inches
Published draw-weight range
30-70 lb across configurations
Rated speed
360 fps at 34-inch draw, 70 lb and a 350-grain arrow
Cam system
HBX with dedicated long-draw modules
How is the 40 LD different from the standard 40?
The 40 LD uses HBX cams and dedicated modules. It does not use the standard Concept XTS 40's SCTR 2.0 cam, CDM, TDM or Spec modules. Both share a 40-inch axle-to-axle length, but the standard 40 covers 26-32 inches of draw length.
Availability alerts
Use Notify me when available for this exact model. Kodiak allocation, arrival date, selling price and available configurations are unconfirmed. Signup does not place a preorder or reserve inventory.
